Please see in driver selection sheet for needed driver for your project!

miro / Pinnacle Video / Motion DC30 x will work in Windows XP, Windows 2000 and Server 2003
with the new WDM-(Windows Driver Model)-2.0-driver.
This driver works also with Windows XP SP2 and
is tested with Windows Longhorn Build 4008.

Driver 1.3x or 1.41 or 1.42 or Instant-Beta2-Update will not work with XP, Server 2003.

If you use NTFS+W2k or XP there is no capture limit.

All miro DC30 are now miro DC30plus with the same features.

You can select standard "upper field first" and DV-compatible "lower field first".
The driver support  NTSC, PAL, SECAM, PAL M, PAL N, PAL 60, NTSC 433

-sound capture will only work with separat soundcard or onboard-sound of your mainboard.
 The build in soundpart of miro DC 30x will not work for sound-capture or output,
 but the connectors on Y-cable or the bluebox can be used
 There are no problems with Audio/Video synchronisation known.
 If you want capture audio with miroVideoDC30x, use driver 1.6 in Premiere 5.x or 6.x or mirocaptureXP.

-supported capture-software:
 AMCAP
 TVMail
 Pinnacle Studio 7/8/7SE/8SE
 Pinnacle Studio 9/9SE/9Plus
 Ahead's NeroVision Express
 IUVCR
 VirtualVCR
 Pure Motion EditStudio 4
 Dr.DivX
 Microsoft Windows Media Encoder 9
 Microsoft Messenger 6.2
 Ulead Video Studio 6/7
 Ulead DVD Workshop
 Intervideo DVD Creator2  (user-report)
 ARCSOFT VIDEO IMPRESSIONS (user-report)
 Nano DVR (user-report)
 Virtual Dub

miro DC30 will now work as webcam source.

For edit you can use every software that support MJPG-software-codecs.

-In Premiere (4.x,5.x,6.x,Pro) you can not capture with this driver,
  Premiere does not support Direct Show filter drivers ->
  This is a problem of the capture software, not from driver!
  If you want use miroDC30x for edit with Premiere or VD you must
  capture with AMCAP or other supported capture software and than use a software MJPG-CODEC
  miroDC30-SoftwareMJPG-codec is included in driver
  Better driver for Premiere 5.x or 6.x is driver 1.6.


-Video Out works with Pinnacle Studio 7/8/9 or Ulead Video Studio 6/7 or with
 Premiere 5, 6, 6.5 (only left Window, not timeline) and  Microsoft Mediaplayer.
 Also all software that use DirectShow-routines to Playback Video
 will work with miro DC30x TV-Out (Steinberg Nuendo 2, Zoom Player, Macromedia Director)

-miro DC30 can also output videofiles without MJPG-format like DivX-Avi’s by using a fast PC >2,5GHz!

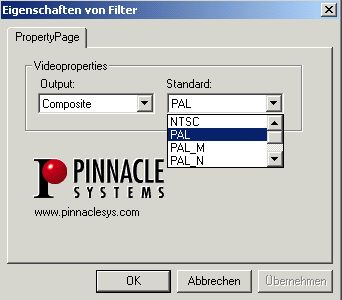

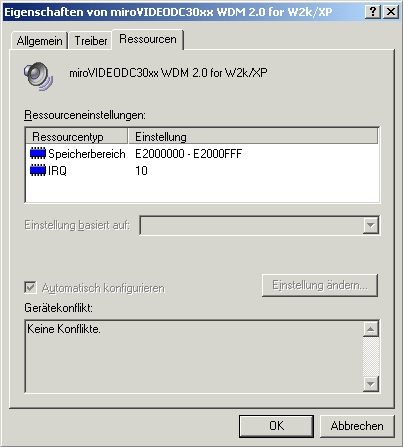

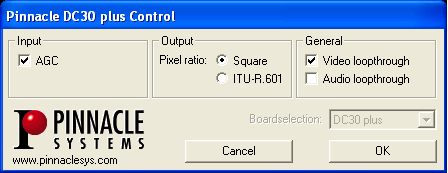

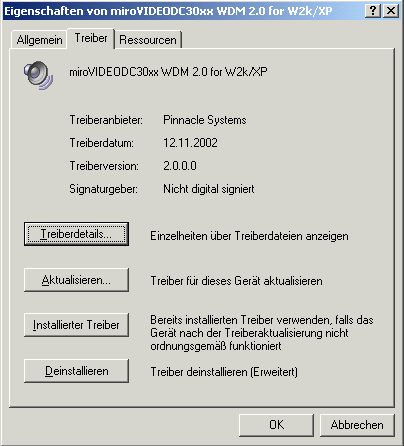

Snap Shoots of miro Video DC30-WDM-driver:

(in your Windows language available)

(in your Windows language available)

or

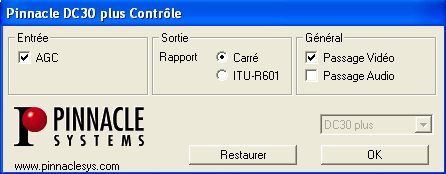

english                                                                                                            french

(only in english language available)

(only in english language available)

(only in english language available)

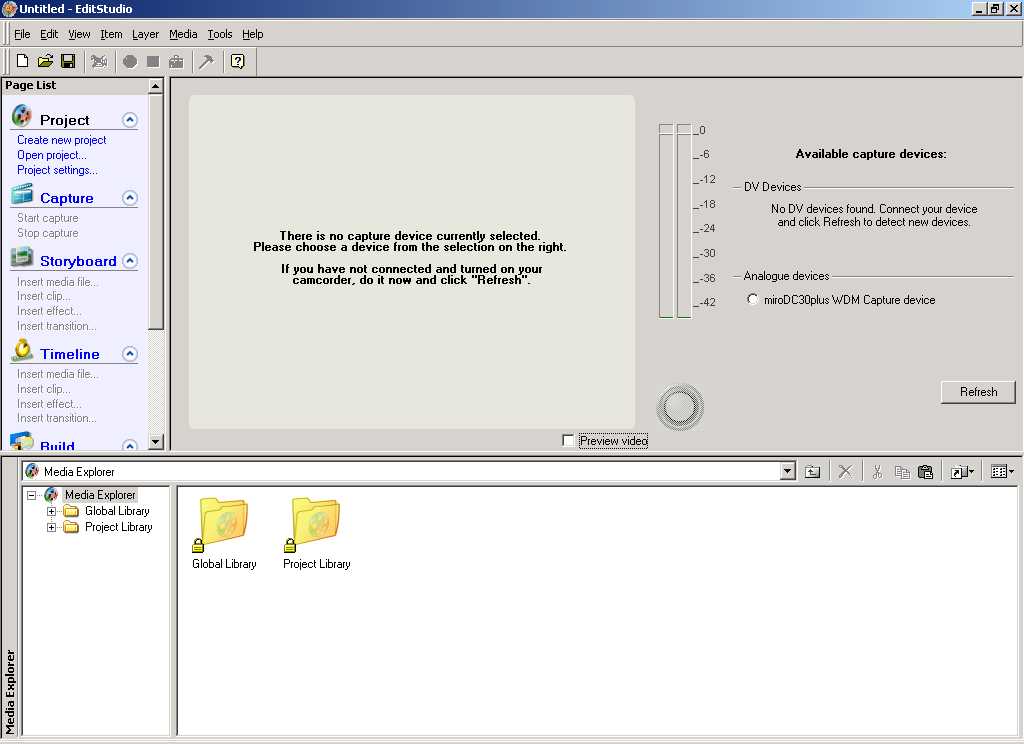

EditStudio

Current version WDM 2.0 for Windows 2000, Server2003 and XP



For infos how to get this new XP-W2k-WDM-driver mail me to Webmaster@mirosupport.de.

last edit
